Datsun Roadster Speedo Pinion from Rallye Enterprises, Ltd.

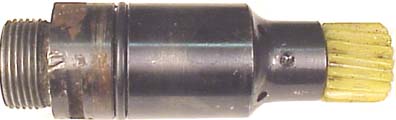

32703-14600U.jpg Speedo Pinion

Speedo Pinion and Holder #DU32-58

ALL 1600 and 65-70 4 speed cars with 3.9 Rear Axle Gears


Speedometer inoperative? After the most-likely cable; this is 2nd on the list of possibilities. Remove this from transmission by removing tiny bolt next to where speedo cable connects and wiggle it out. When reinstalling push in GENTLY allowing pinion to engage trans internal gear. At the end of your cable; between the cable end and the transmission you should have a small 90 degree gearbox converter. Cable should not be screwed on to transmission directly on a 4-speed. Continued cable breakage would be the result. Original pinions were brass. They were also designed to break before the internal gear was damaged; but plastic pieces floating in the transmission oil after a pinion failure are a lot more forgiving than brass shavings...
