Datsun Roadster 1600 Cylinder Head from Rallye Enterprises, Ltd.

..............

..............

Click on Pic for Bigger Pic

..............

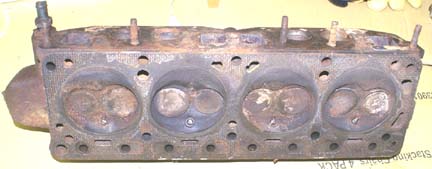

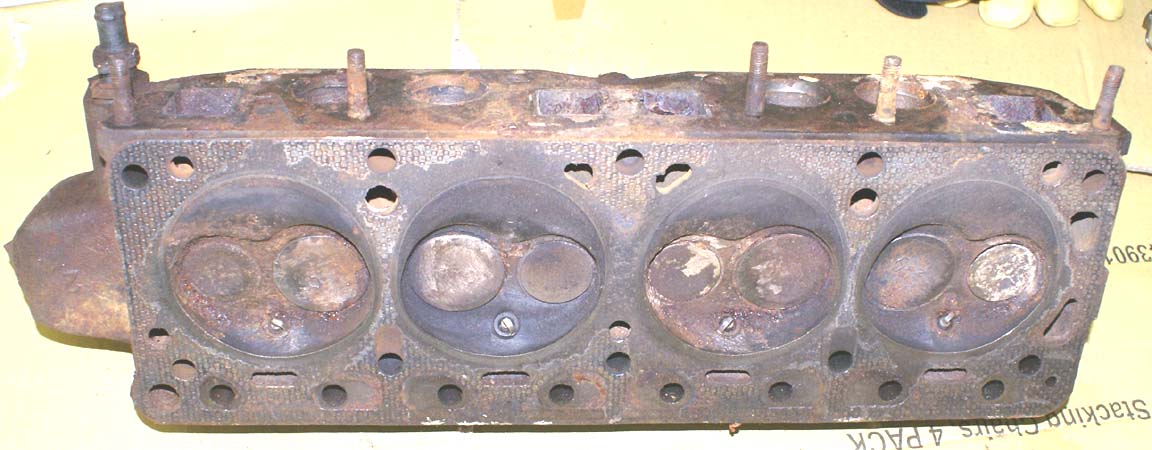

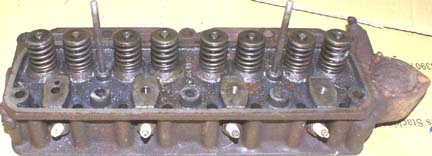

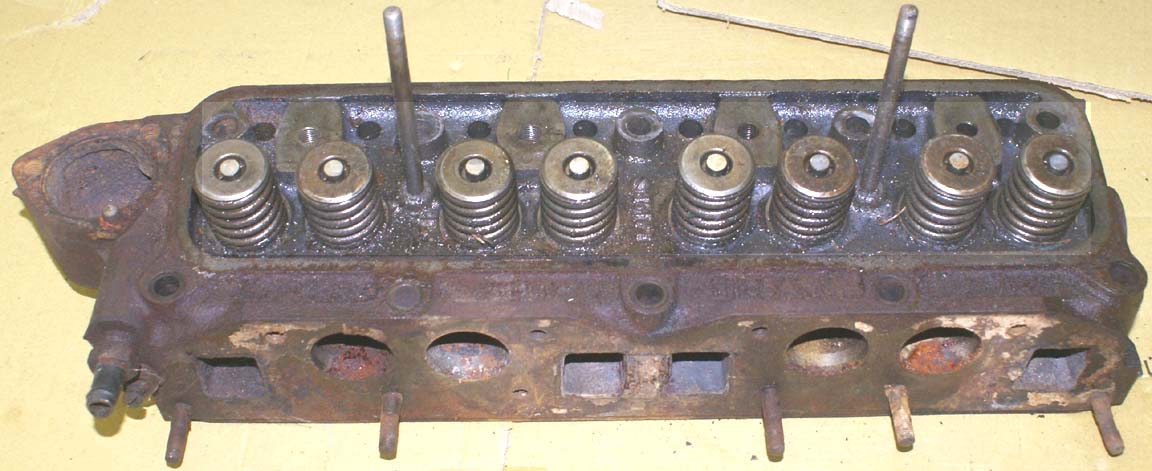

1600 HEAD #DU11-42

Used SAE iron head. Requires 3-hole thermo housing. One bolt for this is broken off. Appears flat; may need to be surfaced just to clean it up. It may be at most only one or two thousandths out of true. Original thickness is 3.248 - 3.250. CORNER MEASUREMENTS:

LF: 3.245

RF: 3.223

LR: 3.235

RR: 3.225
Some shops aren't as careful leveling heads before cutting. They also might have done this on purpose to remove a scratch.

DATSUN 1500 - 1600 USED CYLINDER HEAD Info

..............
