Top: Lower
Left: Lower
Right The
320-14A would be a ready to use switch. The
320-14B would be a switch that needs one or both spade
connectors repaired or installed. They may be loose;
or missing all together so just the copper terminal
bud is showing. Availability is extremely limited and
unpredictable on either type.
Datsun
Roadster Parts from Rallye Enterprises, Ltd.
#
320-13..
1600 late style, bullet connectors, outside thread diameter
is about .545". Thread is 14mm x 1.50.
Measurements are what makes the difference; any wire type
will work.
#
320-14 ..
1600

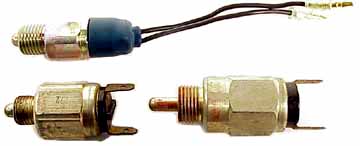

early style switches come with just the spade connectors,
shown in picture; or with long leads like the upper pictured
late style but still have the spade connectors. Outside
diameter of threads is about .493". Thread is 1/2" (20
threads per inch.)
Measurements are what makes the difference; any wire type
will work.
#
253-16 ..
.1500
Availability
Note: Currently the #320-14 is expensive by
itself; and a much better deal when purchasing a rear
transmission tailshaft housing assembly. These are on
the 1600 TRANS page
in the NEW PARTS section. These come with a new rear
bushing installed and some of the shift linkage. They
come in various configurations. We also have some used
tail housings that are modified to take a different
switch. These are on the USED 1600 TRANS
page.
Currently (5/12 the #320-14 is $217.40. The housing
and switch assemblies are as low as $297.40.
Tested,
used #320-14 switches are sometimes available. They
come two ways.
