Datsun 1600 Transmission External Shifter Parts

Fairlady SPL311 Parts from Rallye Enterprises, Ltd.

.....

.....

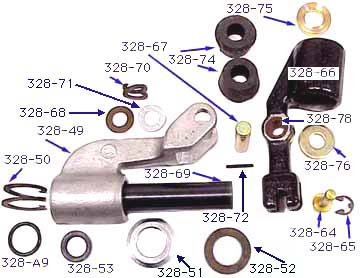

Not all the shims are used in all transmissions. As parts get worn you may also have to improvise some thinner shims to take up the slack on the ends of part #328-49 and between the forked ends of part #328-66. By doing so you can do wonders reducing the slop that you feel at the end of that long shifter. The fiber bushing part #328-78 is shown already installed in Bracket #328-66. It is especially important to use the correct washers on either side of the two rubber bushings #328-74. If they are not in good condition; squeezed properly with proper size washers; they will contribute to the general mushy feeling of so many tired 1600 shifters. The 328-50, 51, 52 are not used on some transmissions. See the info for part 328-49.

1600 EXTERNAL SHIFTER PARTS


	Back to 1600 Shifter		Back to Trans, 1600

.....		.....
	Not all the shims are used in all transmissions. As parts get worn you may also have to improvise some thinner shims to take up the slack on the ends of part #328-49 and between the forked ends of part #328-66. By doing so you can do wonders reducing the slop that you feel at the end of that long shifter. The fiber bushing part #328-78 is shown already installed in Bracket #328-66. It is especially important to use the correct washers on either side of the two rubber bushings #328-74. If they are not in good condition; squeezed properly with proper size washers; they will contribute to the general mushy feeling of so many tired 1600 shifters. The 328-50, 51, 52 are not used on some transmissions. See the info for part 328-49.
