1970 DATSUN 2000 WIRING HARNESSES #DN24-2

................

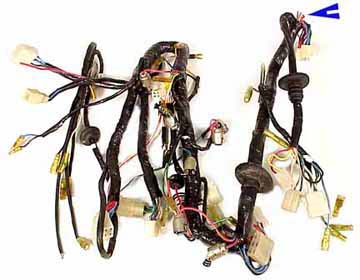

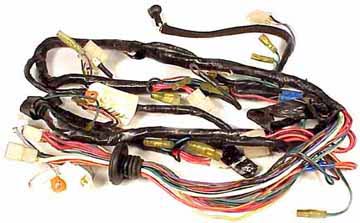

These harnesses, although "new" have each had an idiot cut off one of the plugs on each harness. The tape on the hood harness has also been partially removed, as shown in picture. Sooner or later I'll be forced to fix these myself, but thought I'd put them up for sale as is to see if I could remove one of the multi-thousand things on my "to-do"list. I have included the appropriate plug-in which you can use in the repair.

USING THESE ON 70 1600. Can be used on a 70 1600 if you run the temp sender wire out to the other side of the engine. Does not have the wiring for the extra smog valve on the intake manifold of a 70 1600 so you can only use it if if you aren't going to be hooking up your intake manifold smog valve.

USING THESE ON 69 2000
Can be used on a 69 2000 or 1600 if you already have a later car with the 4 prong starter motor harness. You would have to purchase a 4 prong starter harness if you want to use this pair on an earlier 69 1600 or 2000. The 70 uses a different plug-in configuration on the backup wires as well.

USING THESE ON 69 1600
Can be used on a 69 1600 if you use both harnesses and run the temp sender wire out to the other side of the engine. Can be used on a 69 1600 if you already have a later car with the 4 prong starter motor harness. You would have to purchase a 4 prong starter harness if you want to use this pair on an earlier 69 1600. The 70 uses a different plug-in configuration on the backup wires as well.

................
